2022 Comagrav DIGI 2034 Flatbed Cutter

Summary:

Comagrav Digi 2034 Flatbed Cutter

Age: 2022 (first installed October)

Software/Front End: Pilot - 2021 Version

Tools: Drage Knife, Router/Milling, Pen Tool

More information:

COMAGRAV DIGI 2034 - Table Size 2120mm x 3400mm

PILOT A+, PC, camera system, vacuum /w 1 pump, Cut2DPro.

COMAGRAV DIGI multifunctional CNC cutting table for industry, packaging and sign producers.

AC servo drives and planetary gearboxes are installed. Zone Vacuum table and 1 vacuum blower (Becker)

Maximum speed 1150 mm/s, acceleration up to 3000 mm/s2. 6 Zones Vacuum Bed

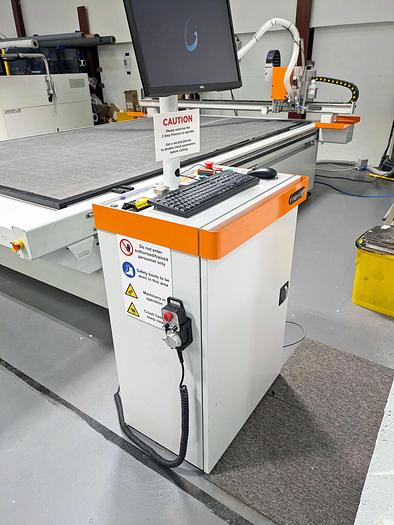

Recognition camera system for cutting of printed materials. Sophisticated CNC controller PILOT

Advanced for maximum dynamics and speed. Prepared for installation of oscillating knife heads,

universal tangential heads, routing spindle and more. Automatic Z Sensor, PC included.

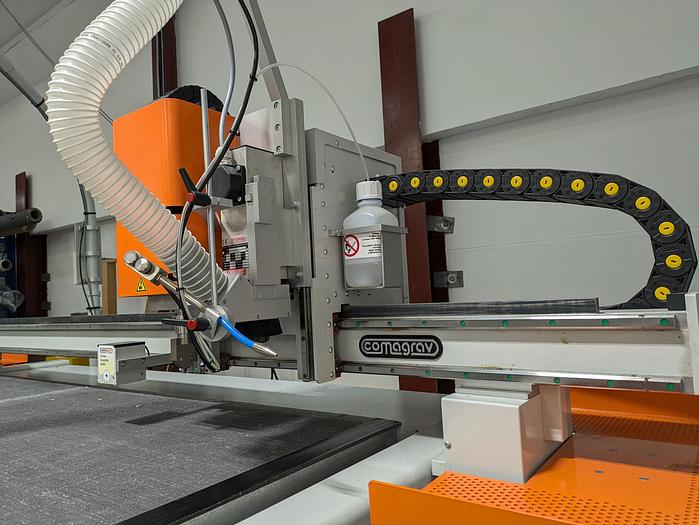

Spray cooling System Profi (SPRAY_PRO)

Ideal for Aluminium, Alucobond, Dibond, req compressed Air

Optional system for spraying liquid directly on the tool during cutting process. It is also usable as mister.

Manual adjustment of compressed air and liquid. Includes flexible hose and adjustable holder.

DIGI professional Spindle 730 W/24000 (RPM D_S_730W24T)

with ramp and dust collector

Professional routing and engraving spindle for DIGI

3 phase spindle with ER20 tooling (up 12mm diameter). Ceramic bearings for professional and reliable work up to 24,000rpm,

hardened and balanced shaft. Dust collector with flexible hose and steel ramp to cover complete working area. Includes one

routing tool, 3 x collets (3,4,6mm). Dust collector Included

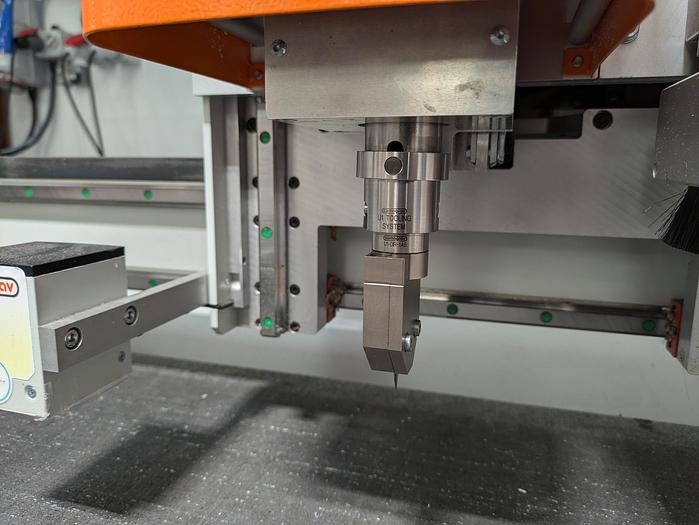

Tangential Module for Universal Tool U1 (Module A) - (MODA_U1)

pneumatic parking, AC servo, tangential rotation, position for insert of U1 tools

Module for universal tools U1

AC servo tangentially controlled panel for insertion of U1 tools. High dynamic cutting.

use Kiss-cut, V-cut and other U1 cutting devices.

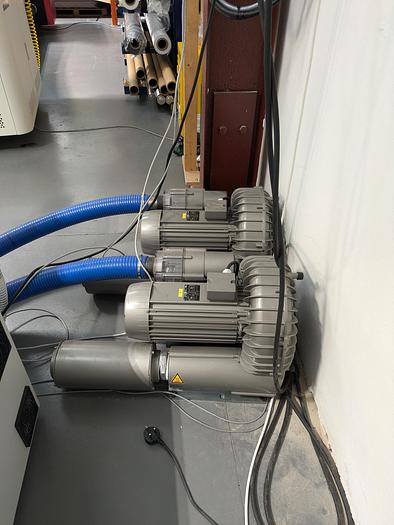

Additional vacuum pump for DIGI

5,5 kW, mid-range vacuum, incl. filter, hose

Additional mid-range vacuum pump, power 5,5 kW, max.

flow rate 390 m3/h, maximum vacuum 315mbar rel.

Made by Becker in Germany.

Description - Tools

Routing pad 2mm, size 1 x 1 m (RP20)

For table protection during Routing operation

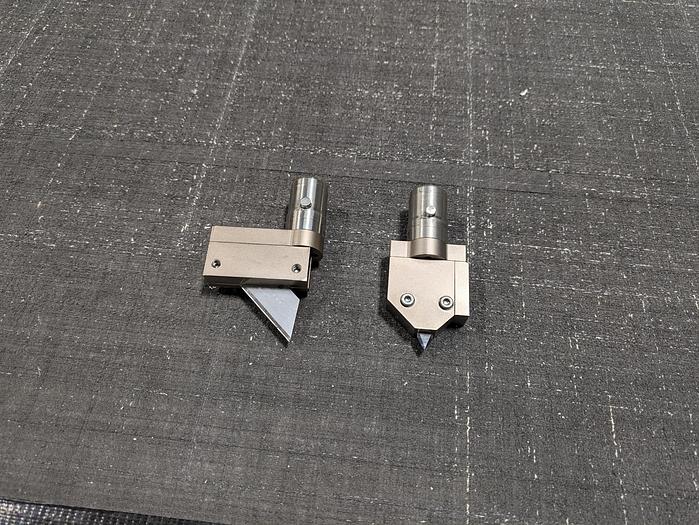

SET of KNIVES and PEN

Kiss-cut, Knife , Knife with pressure foot, Knife thin, Knife HSS, Pen

Set of 6 tools equipped with knives for U1 tooling system

Kiss-cut tool with knife

Knife tool with E10 knife

Knife tool with pressure foot with E11 knife

Knife tool thin with FN8 knife

Knife tool HSS with HSS knives 50pcs

STARTER SET DIGI ROUTER "L"

Set of tools for plastics, aluminum and sandwiches

Set of microcarbide tools and routing pads for flatbed cutter

Router bits: A320, A330, A440, A660B, MP320, MP330, MP440, MP660B, B440, B660, D330, D440, D660

Ballnose tools: BN3, BN6

Engraving tools: G44506, G44515

Routing pad 1mm thickness - 1x6 meters
