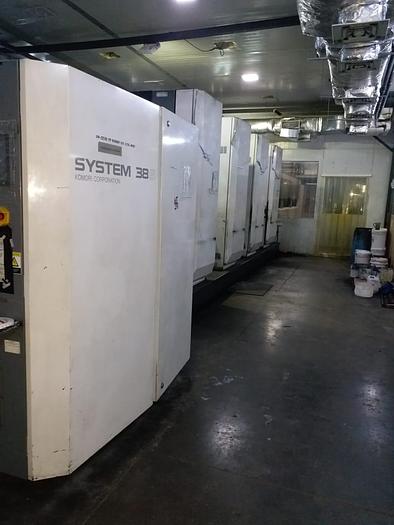

2009 Komori System 38 LR-38/578S

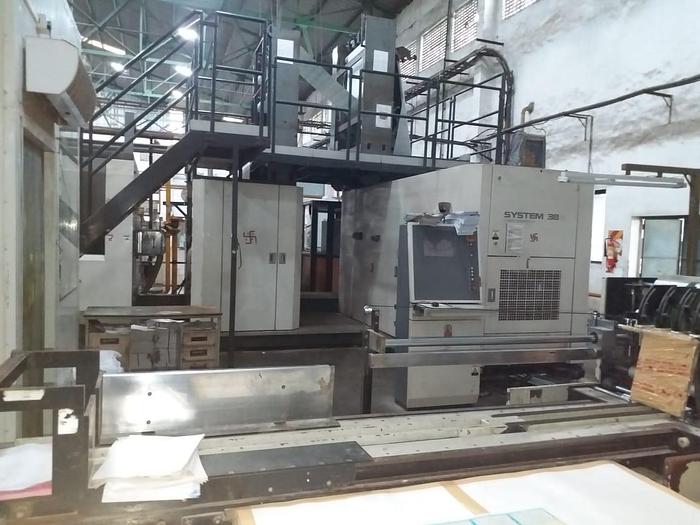

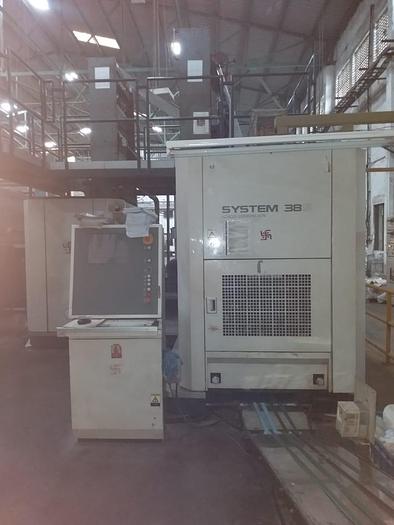

Komori LR-38/578S (System 38)

Cut-off: 578mm

Web-width: 965mm

Age: 2009

Maximum printing area: 965 X 568mm

Primary power source: AC415V+/-10%

3phases, 1Earth, 50Hz+/-5%

Plate size: 975+/-1.0 X 602+0/-0.5 X 0.30mm

Blanket size: 980 X 635+/-2.5 X 1.95mm

Paper stock range - 1web: 40 – 130gsm

Maximum printing speed: 42,000IPH (700rpm)

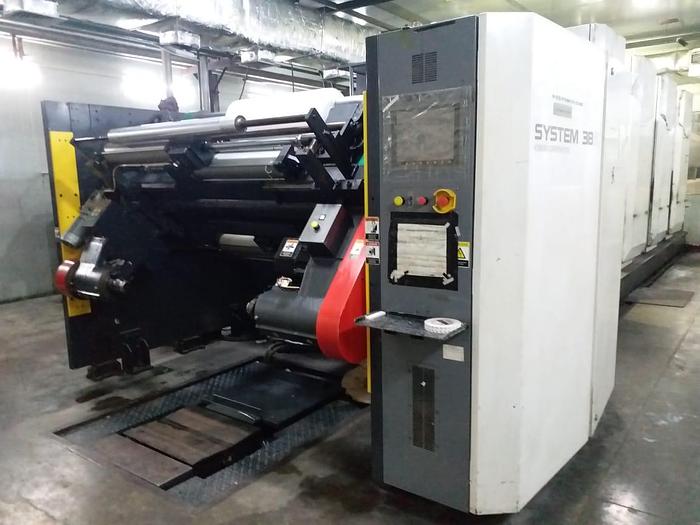

One (1) KOMORI original Flying Paster integrated Infeed unit.

Model: FPI-40/4322

One (1) infeed unit with auto tension control

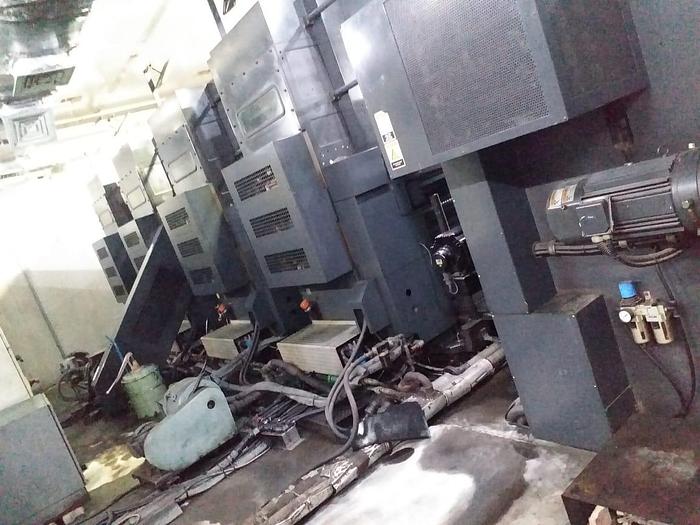

Four (4) Komori printing units

• Individual ink duct keys controlled by PQC system
• Komori dampening system, controlled by PQC
• semi auto plate change
• Baldwin dampening system
• QTI colour register

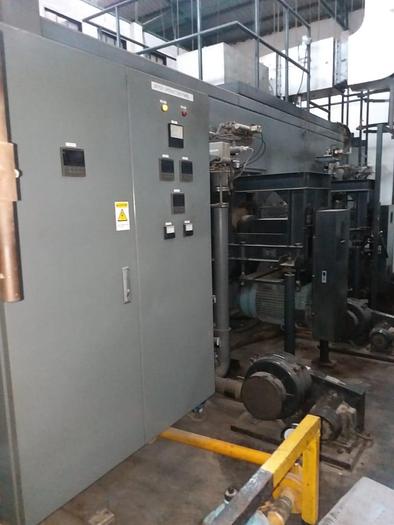

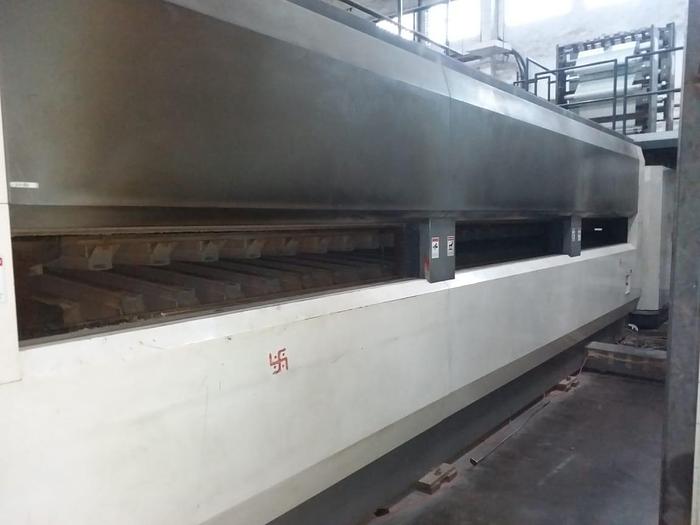

One (1) Air Gases Techno Dryer Model: CZX-128N, 7.29m long, Dual-Dry tech

(no afterburner)

One (1) Komori Chill Roll (4 rolls)

Web guides

Silicon applicator

KOMORI KHS-AI (Advanced Interface) system for quicker make-ready time

One (1) Komori CF-38/578 combination folder for tabloid, quarter fold and double-parallel folds

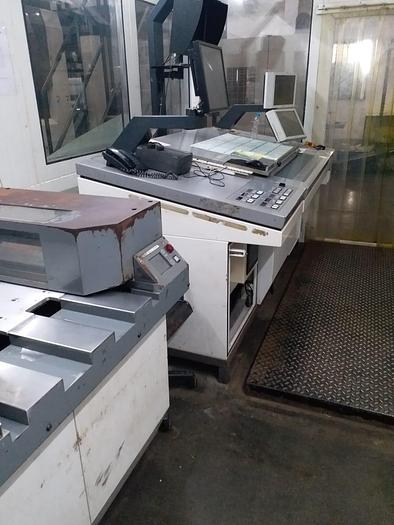

Consoles, motors, drives and all other accessories to complete press

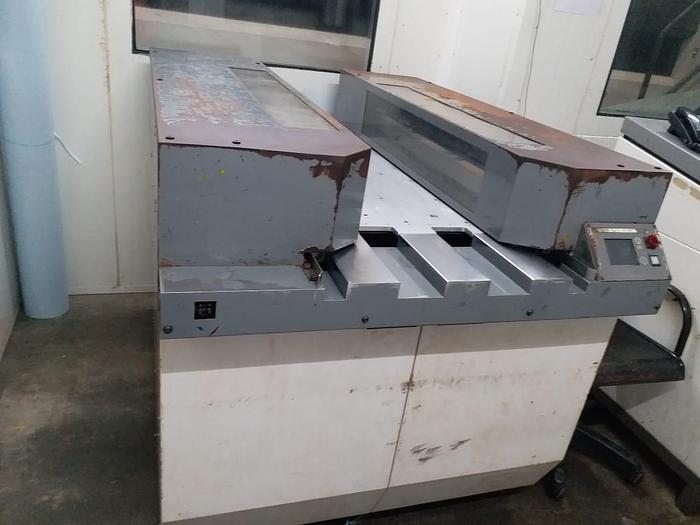

Plate bender
