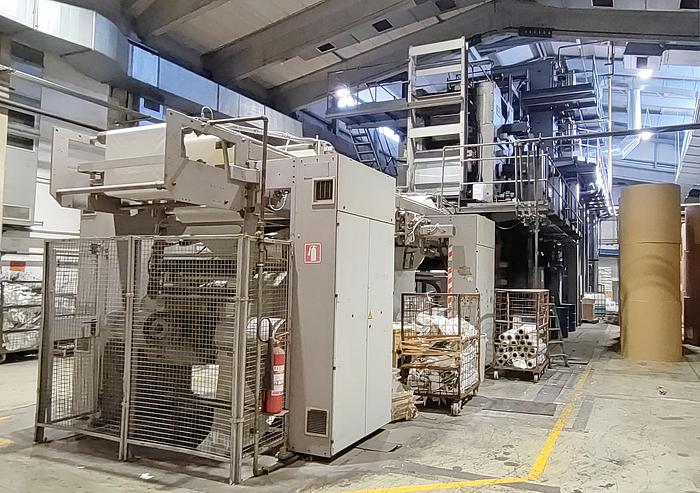

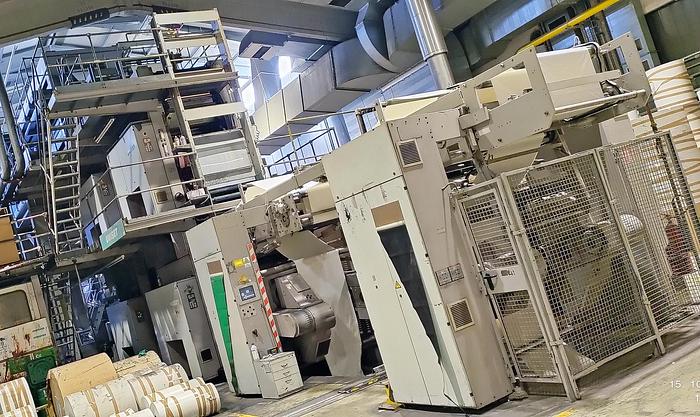

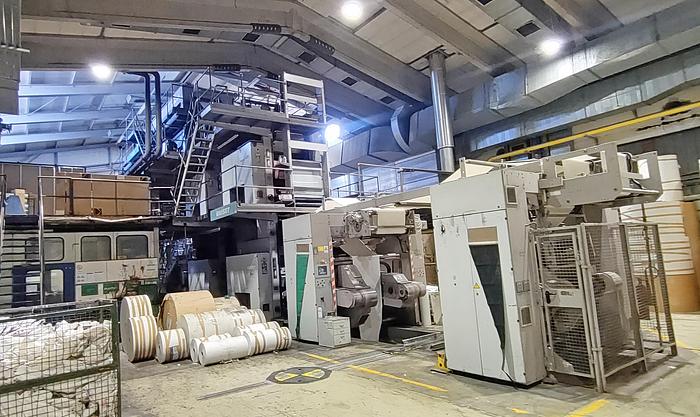

2000 MAN-Roland Uniset 70

MAN Roland Uniset 70

Cylinder circumference:           1260mm

Cut-off:                                         630mm

Impression area:                          610/305mm high by 950mm wide

Max paper roll width:                  960mm

Min paper roll width:                   450mm

Max paper grammage:                90g/m2

Min paper grammage:                 40g/m2

Max theoretical speed:               70.000 imp/h

Dryer and oxidizer fuel:               natural gas

Equipment:

• 2x MAN CD13 Reel stand with infeed and E+L automatic paper centering device
• 2x chain web guide ( automatic paper infeed from reelstand to turner bars)
• 2x 4/4printing towers with system for automatic blanket washing OXY DRY
• 2x MEGTEC DUAL Dry III connected to external MEGTEC Epsilon oxidizer
• 2x Chill rolls with WEKO remoistening/silicon applicator
• 4x Turner bars with 180° bay window option
• E+L automatic paper centering devices
• 2x 2:3:3 folder both with 3rd folder
• 2x PLANATOL automatic glue applicators
• TOLERANS wire stitching unit on one folder (for stitching A3 products)
• BALDWIN Daily Liner unit for preparation and chilling of fountain solution
• System for controlling the temperature of all heat sensitive processes (without the chiller)
• Fully automatic video-controlled plate bending machine Nela
• 2x folder transport belts Gammerler
• 1 x rotary trimming line
• 2x Compensating stackers InLog
• System for automatic color register Grafikontrol
• System for automatic cut-off register Grafikontrol
• CIP3 system for presetting of ink values
