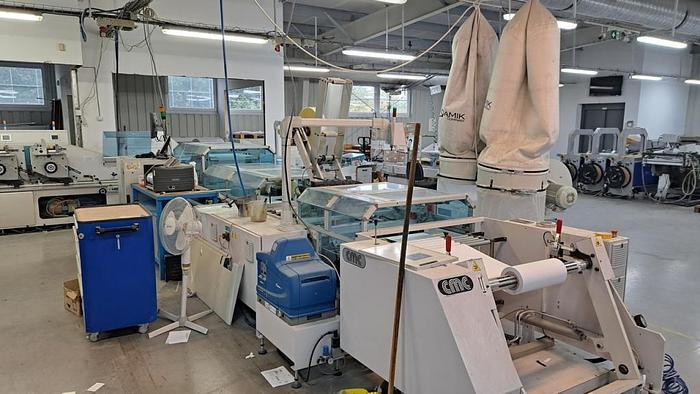

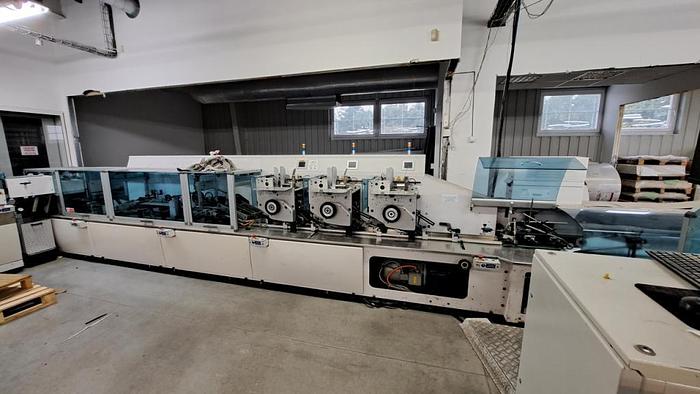

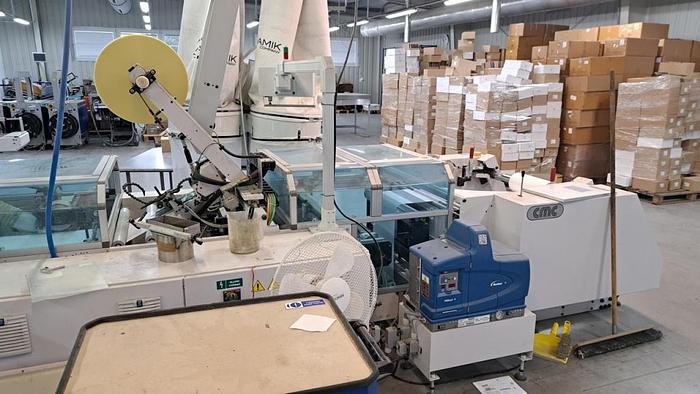

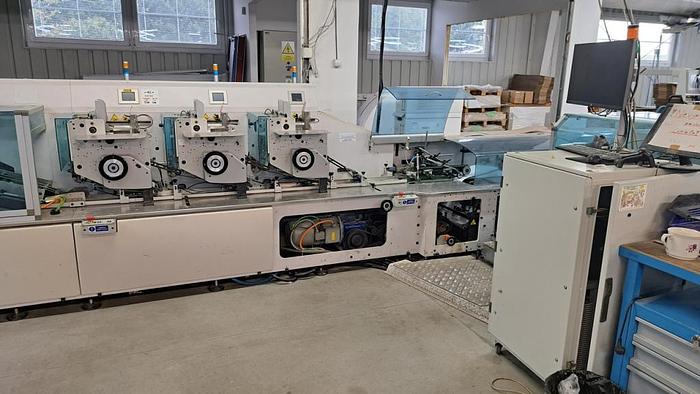

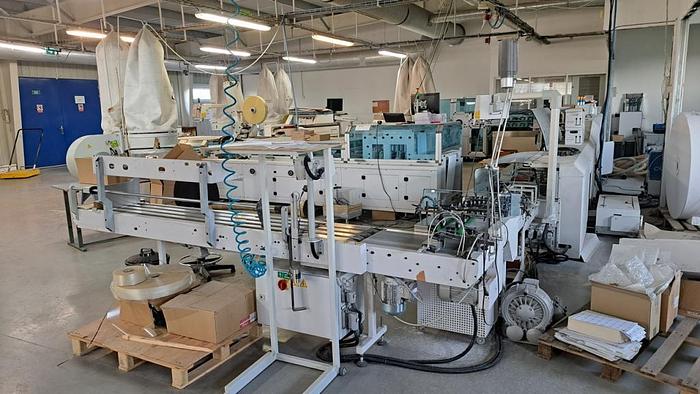

2016 CMC JWR 30K/2C

This CMC line produces mail packets / envelopes that can contain a booklet and a maximum of 3 attachments. This booklet and attachments are packed in a glued envelope. • The envelope can be personalized with an address before processing or it can have a window filled with transparent foil and the address is personalized on the inner inserted product. • 1st booklet production: unwinding from a roll of printed paper, cutting into sheets, laying the sheets on top of each other, stitching with wire (2 staples) folding the booklet in the spine and trimming the booklet against the spine. • 2nd delivery of attachments: The finished booklet arrives on a conveyor above which 3 attachment stations are installed. This means that it is possible to add 3 attachments to the booklet. It is possible to insert attachments variably according to the settings of the job being processed. For example, all attachments are placed on one booklet only two or one or no attachment is placed on another. This information is contained in the database and is anchored in the QR code. • 3rd postal envelopes: unwind the printed paper from the roll you can cut-out a window for the address and stick a transparent plastic foil on the cut-out window. It is also possible to have the address printed on the envelope, in which case it is not necessary to cut out the window. The channel includes a camera that reads the QR code and matches the envelope with the booklet and attachments. • 4th wrapping section: at the beginning of the envelope packing (-wrapping) section a booklet with attachments is placed on a belt of envelope paper. A permanent adhesive is applied to the paper belt of the envelopes and the booklet with attachments is closed in the envelope using the wrapping stock. This is followed by the pressing of the product, due to the high-quality gluing of the envelope. The last operation is the cutting of the belt into individual products (postal packets). At the customer's request it is also possible to perforate the edges of the parcel for better ungluing. • The line cuts the printed roll into individual sheets lays them on top of each other cuts them flat • 2 stitching heads with a wire (staple) stitch (V1 stitching max. 16 pages of a booklet) and then transports this product into a postal envelope. • envelopes can be windowed or standard with foil applied with a slitting knife.

More information available on request
